Integration with Azure DevOps

After completing this article, you will learn how to:

– Integrate your Azure DevOps account with your AppSec Phoenix account
– Link Applications and Environments to ADO Projects
– Create incident tickets to track Vulnerabilities in your AppSec Phoenix Applications and Environments
– Configure Azure DevOps webhooks to update ticket status in AppSec Phoenix

Prerequisites

– In order to integrate Azure DevOps to your AppSec Phoenix instance, you should have access to the platform as an Org Admin user.
– Access to your Azure DevOps credentials

A. Integrating Azure DevOps

Organisation and Access Token

In order to authenticate with the Azure DevOps (ADO) API server you need your Organisation name and an active Access Token. You will need these details later, when configuring the integration in AppSec Phoenix.

Organisation Name

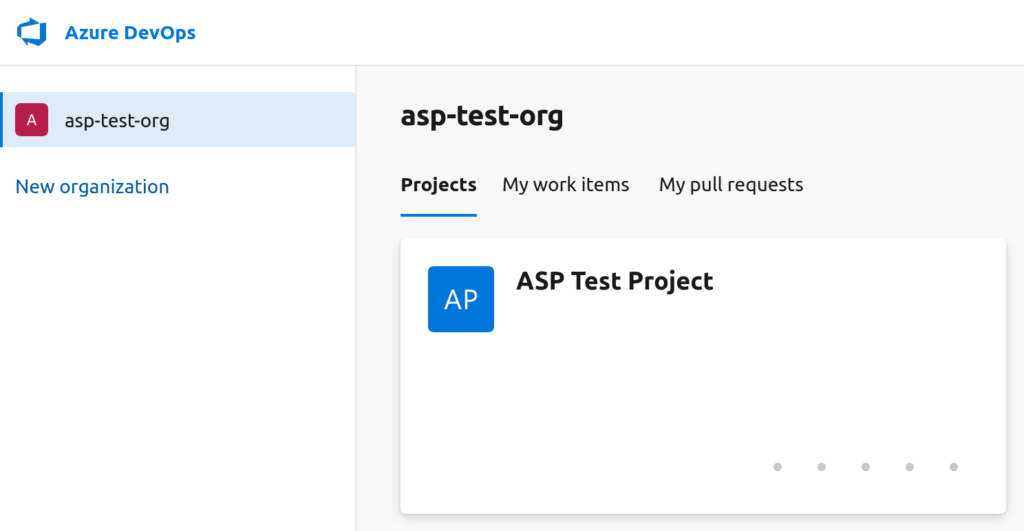

When you log into your ADO account you can see the list of organisations on the left-hand side. In the example below the Organisation name is “asp-test-org”.

Access Token

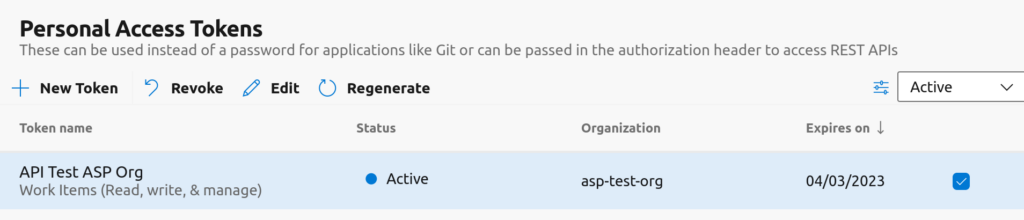

To create an Access Token you need to go to the Personal Access Tokens page. To get there, click on the user menu/icon in the top-right corner, then click on the user context menu (three dots) and select “User settings”. In the pop-up menu select “Personal access tokens” in the bottom section.

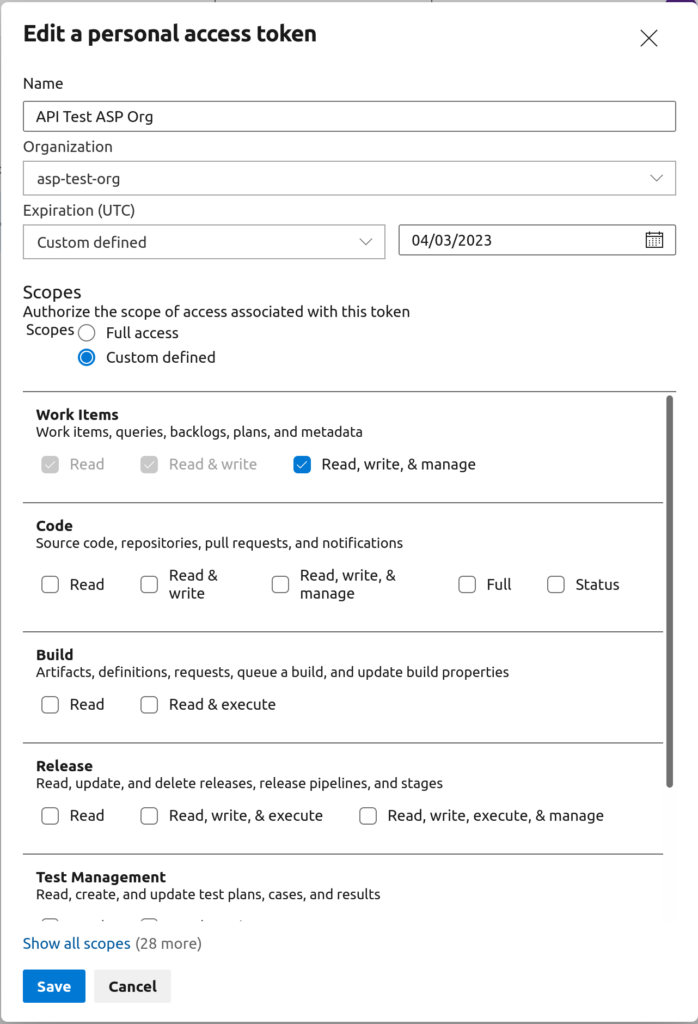

You would normally want to create a new token for this integration. Select “+ New Token” and fill in the details in the token configuration form. The two key points to keep in mind are:

  • Make sure that you enter a fairly long, custom defined Expiration date. When the token expires the integration between AppSec Phoenix and ADO will stop working.
  • In the Scopes section either select Full access or make sure that Work Items has “Read, write & manage” selected.

Make sure that you copy the token in the last step since this is the last time that it will be visible.

Integrating ADO within AppSec Phoenix

Before using ADO integration features within your AppSec Phoenix instance, you have to set it up first by configuring the ADO – AppSec Phoenix integration. Here are the steps to complete the integration process:

  1. On the Navigation Menu, go to Integrations > Workflow. Then click on the Create Workflow button.

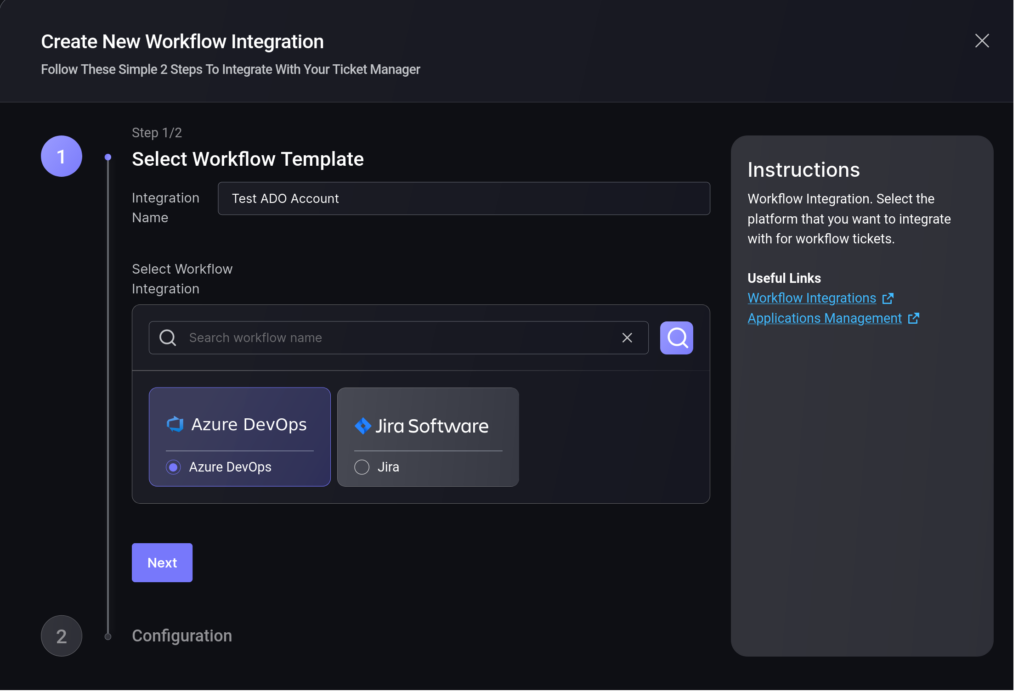

  1. In the first step enter a name for the integration and select the Azure DevOps integration type. Then click Next.

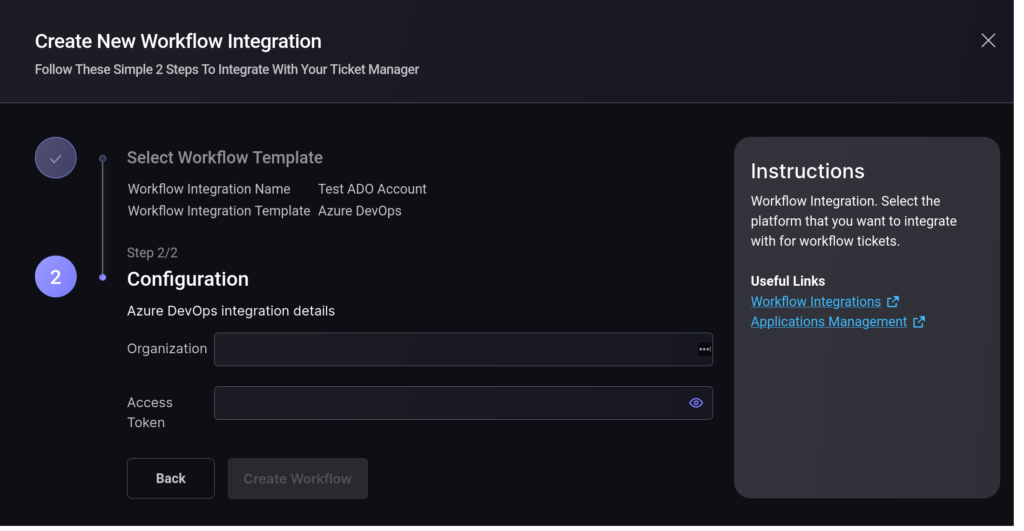

  1. On the second step you need to provide the ADO connection details discussed earlier in this article:
  • Organisation name
  • Access Token
  1. Click the “Create Workflow” button.

In order to link an existing AppSec Phoenix Application to ADO, you need to edit the Application and enable the “Link to Issue Tracking Project” checkbox.

  1. On the Navigation Menu, select Risk Explorer > Applications.
  1. Select the Application List tab and scroll down to the Application that you want to update. Hover your mouse over the application entry, click on the three-dots icon than appears on the right, and select Edit (pencil icon).

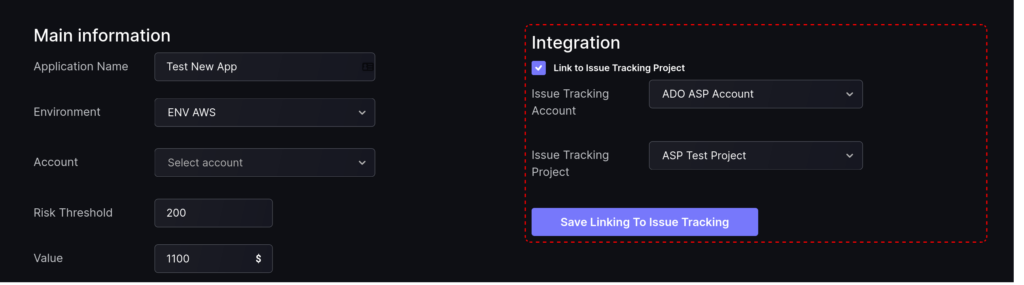

  1. In the Update Application form, find that Integration section on the right-hand side and check the “Link to Issue Tracking Project”.
  1. Select the ADO Account and ADO Project that you want to link the Application to.
  1. Click the “Save Linking to Issue Tracking” button to save the changes.

By linking your application to an ADO project you will be able to create tickets in ADO for the application’s vulnerabilities with a single click.

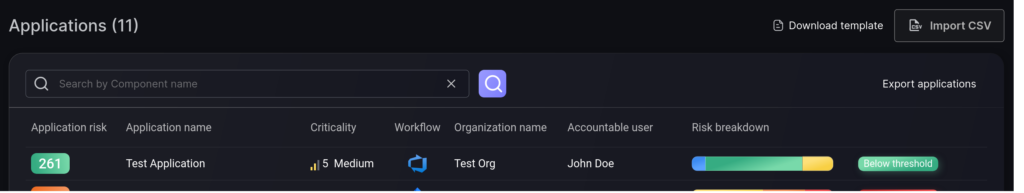

Once the process is completed a blue ADO logo will appear next to the Application in the Applications list to indicate that the Application is currently linked to an ADO Project.

In order to link an existing AppSec Phoenix Environment to ADO, you need to edit the Environment and enable the “Link to Issue Tracking Project” checkbox. The whole process is analogous to the one for Applications (above):

  1. On the Navigation Menu, select Risk ExplorerEnvironments.
  1. Select the Environment List tab and scroll down to the Environment that you want to update. Hover your mouse over the application entry, click on the three-dots icon than appears on the right, and select Edit (pencil icon)
  1. In the Update Environment form, find that Integration section on the right-hand side and check the “Link to Issue Tracking Project”.
  1. Select the ADO Account and ADO Project that you want to link the Environment to.
  1. Click the “Save Linking to Issue Tracking” button to save the changes.

Once the process is completed a blue ADO logo will appear next to the environment in the Environment list to indicate that the environment is currently linked to an ADO Project.

D. Create an ADO Ticket to Track a Vulnerability

Once ADO is fully integrated with your AppSec Phoenix account, you can create ADO tickets to keep track and monitor a Vulnerability identified in your Application. Here are the steps for you to follow:

  1. On the Navigation Menu, click Vulnerabilities.

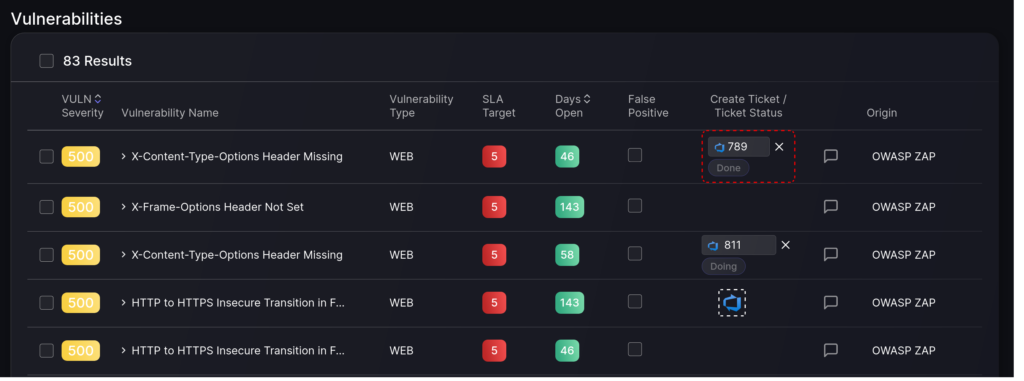

  1. Scroll down until you see the Vulnerabilities section. Look for the Vulnerability you wish to track with ADO and click the blue ADO icon corresponding to it (marked with the white line in the screenshot below).
  1. Once a ticket has been successfully created, the ticket reference number and status will be displayed where the blue ADO icon was located in step 2. An example has been marked with a red line in the screenshot below.
  1. Click on the ticket reference number to open the incident ticket page in ADO.

You can monitor the progress of the ticket on ADO moving forward.

E. Webhooks and Issue Updates

Once a ticket has been created for a vulnerability AppSec Phoenix can keep track of the status changes and deletion of the ticket within Azure DevOps. For this to work you need to configure a webhook within ADO that tells the platform how to send updates to AppSec Phoenix.

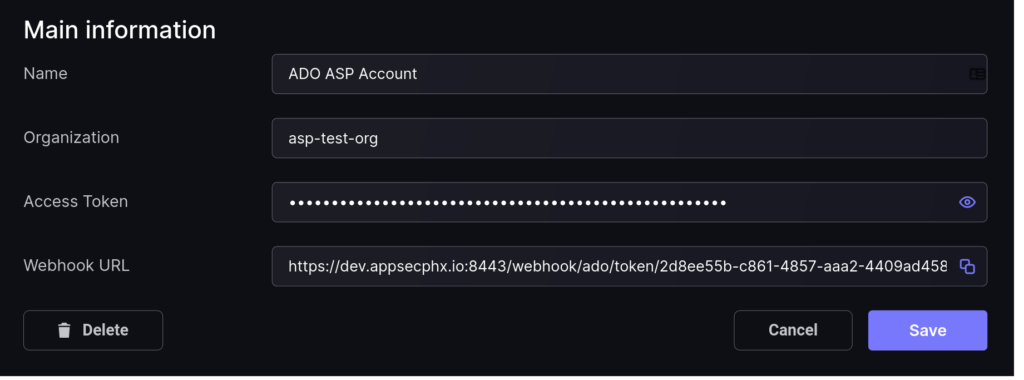

In order to configure you webhooks you will need the unique URL create for your ADO integration. In the main menu select Integration > Workflows and then click on the ADO integration that you are configuring the webhooks for. In the details you will find the “Webhook URL” field, which is not editable but can be copied from here.

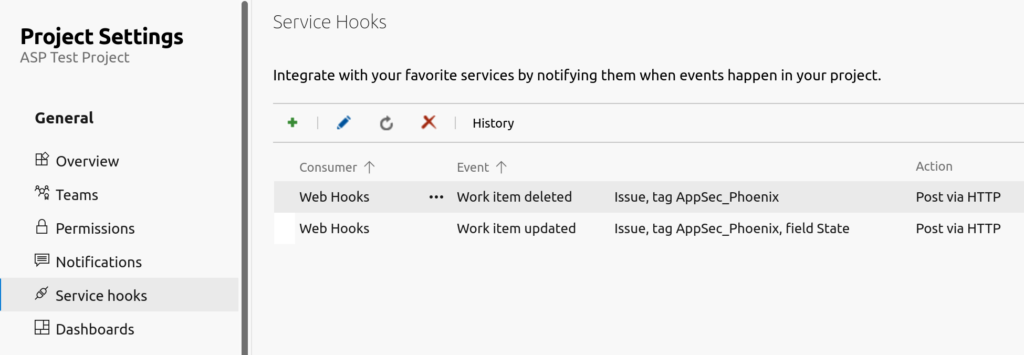

Once you have your webhook URL, select a Project within ADO and click on “Project settings” at the bottom-left corner of the page. In the vertical menu that appears, select “Service hooks” in the General section. Here you can create two webhooks, one for work item updates and another one for deletions.

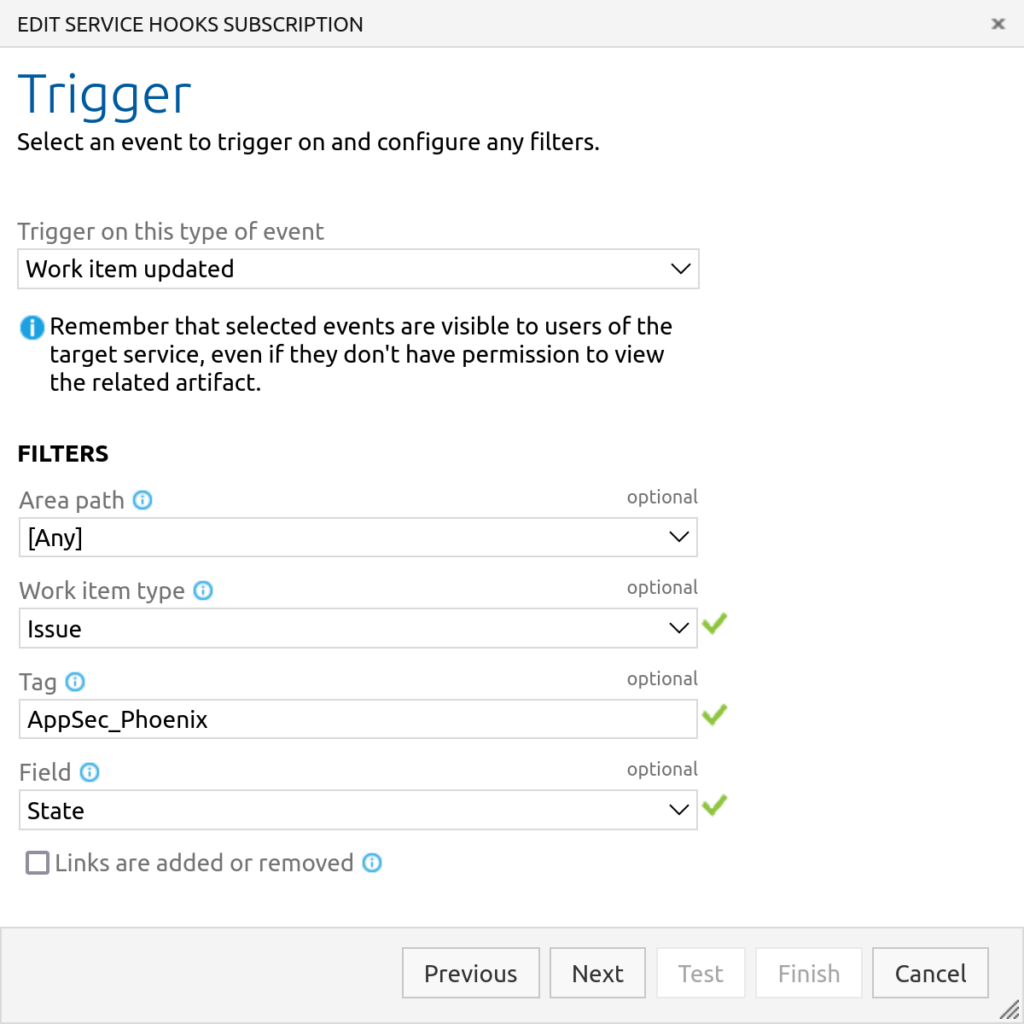

Click in the plus (+) sign to create a new Service Hook (webhook) and select “Web Hooks” near the bottom of the list in the popup. Then click Next and configure the first screen as shown below. (The tag should be AppSec_Phoenix)

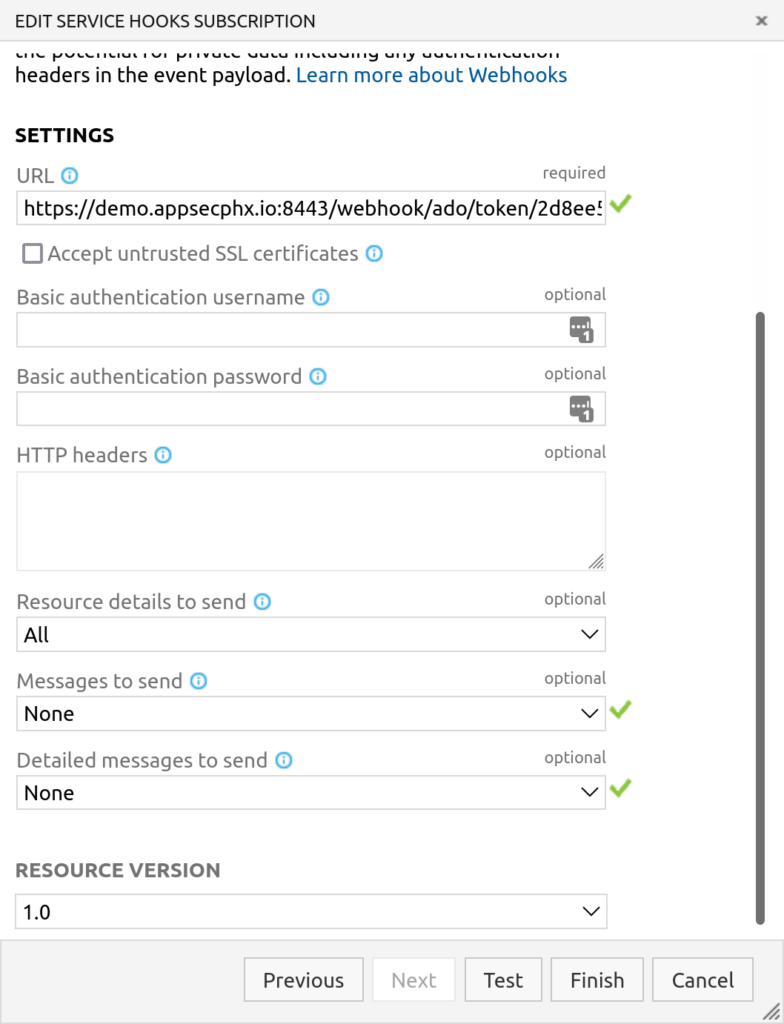

Then clink on “Next” and enter the webhook URL obtained from AppSec Phoenix earlier. The other fields can be configured as shown below.

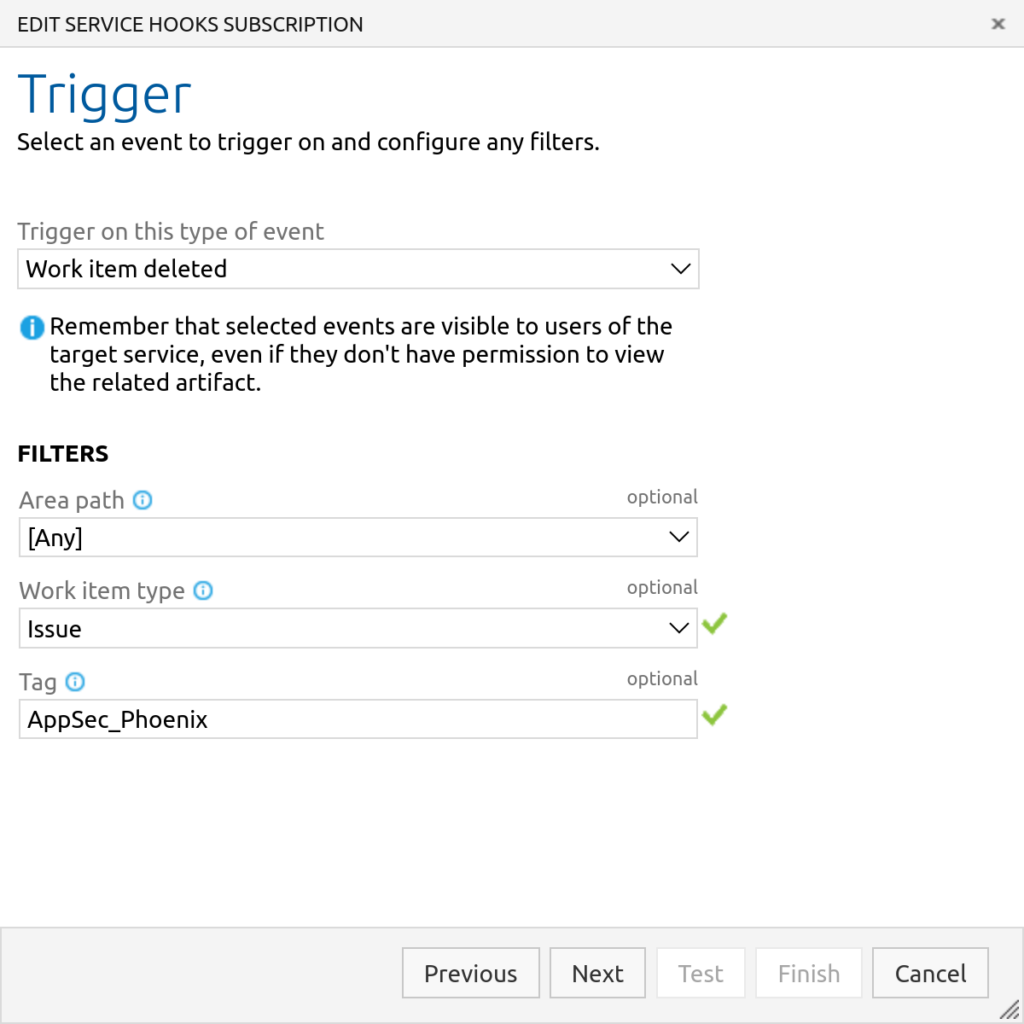

For the deletions you can follow a similar process. Create a new Service Hook and configure the first step as shown.

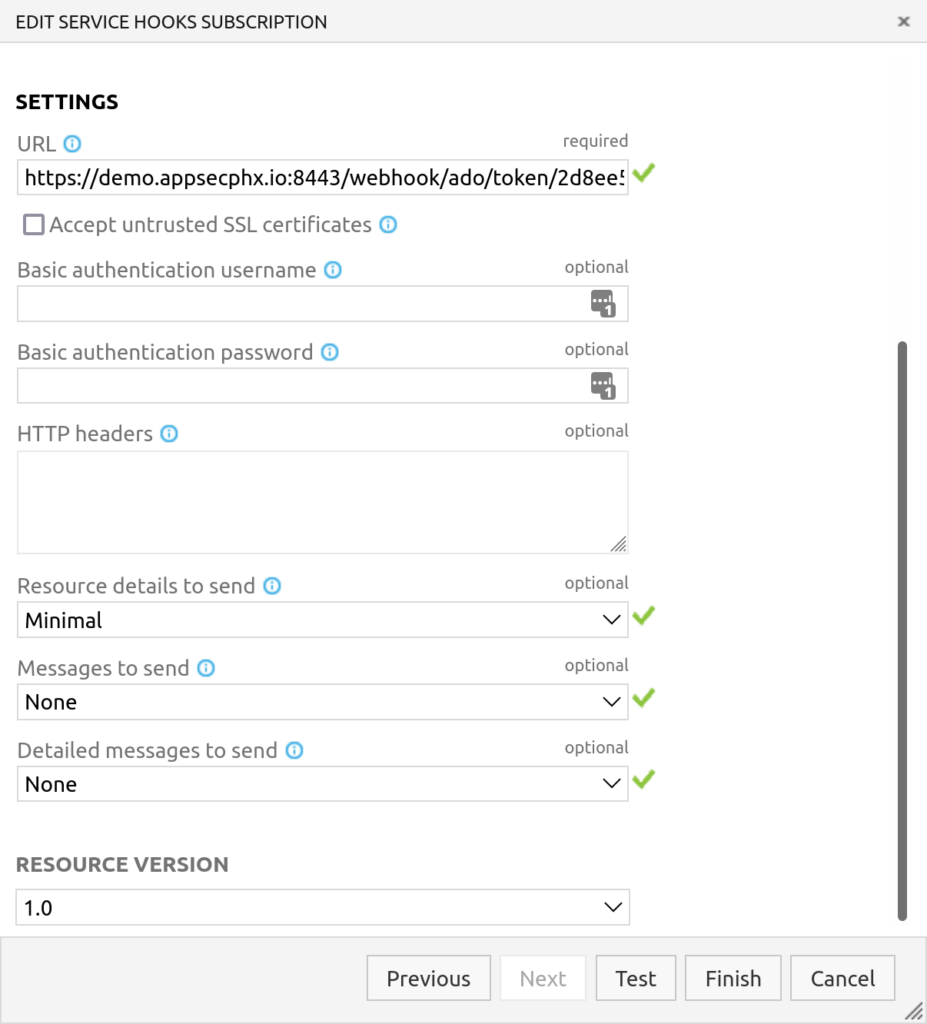

On the second step enter your webhook URL and configure the rest as shown.

Once you have completed these steps, any status changes or deletions within ADO of Work Items (Issues) created through AppSec Phoenix will be updated automatically.

Updated on March 21, 2022
